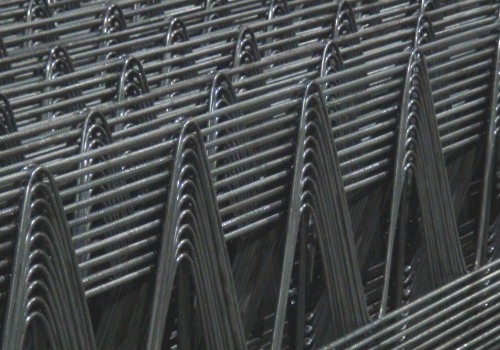

Steel wire chairs manufactured to provide a straight line of support at a uniform height.
Passive reinforcement obtained by a spot welding process with a triangular prism shape, consisting of 3 wires at the vertices of the triangle and 2 wires on the side with a sinusoidal wave pattern.
The constituent wires are produced by cold deformation.

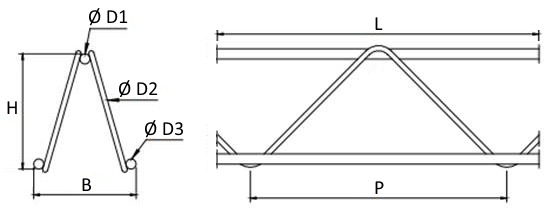

|H (mm)||B (mm)||D1 (mm)||D3 (mm)||D2 (mm)||P (mm)||L (m)|
|70 to 250||70 to 100||4 to 12||3 to 12||3 to 6||200||1.40 to 14|
Other specifications on request.
- Pedestrian access;
- Protection roofs;
