Ibermix fibers HER 0.90/60 BL

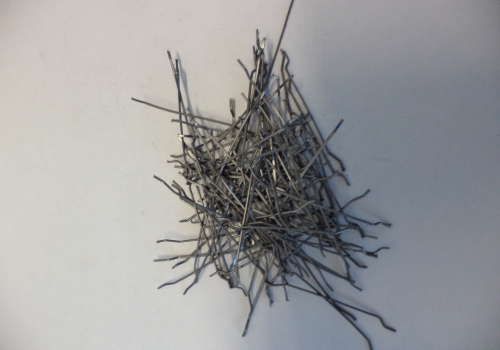

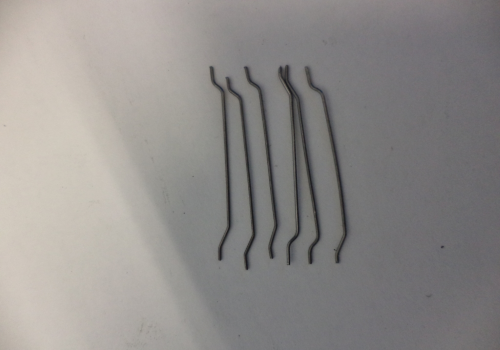

Deformed elements of cold-drawn round wire – low carbon.

Bounding concrete to the traditional materials.

C9D (according with EN 16120-2)

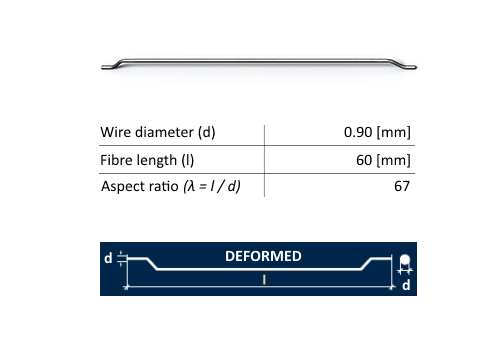

Nominal Tolerance Geometry
Wire diameter (d) 0.90 [mm] [0.86 – 0.94] [mm]
Fibre length (l) 60 [mm] [54 – 66] [mm]
Aspect ratio (λ = l / d) 67 [57 – 77]
Tensile Strength 1130 [N/mm²] [1045 – 1215] [N/mm²]
Modulus of Elasticity ± 200 000 [MPa]

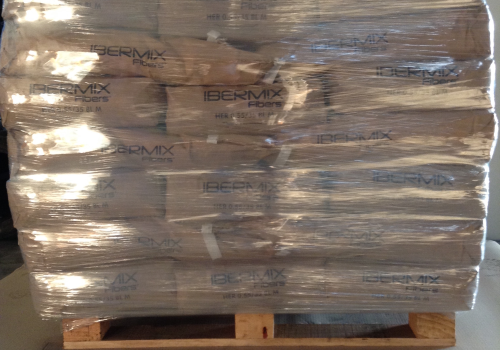

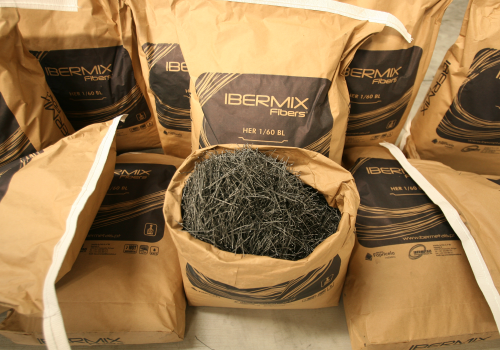

Bag Weight Number of fibers / kg Pallet standard
20 Kg 3340 1200 Kg - 60 paper bags

Other specifications on request.

The fibers are indicated for precast concrete, floorings, suitable for the execution of commercial or industrial centers, external or internal decks, foundations and concrete pipes.
