Ibermix fibers HER 0.55/30 BL

Deformed elements of cold-drawn round wire – low carbon.

Bounding concrete to the traditional materials.

C9D (according with EN 16120-2)

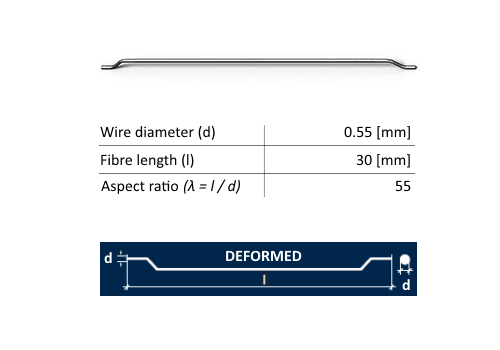

Nominal Tolerance Geometry
Wire diameter (d) 0.55 [mm] [0.52 – 0.58] [mm]
Fibre length (l) 30 [mm] [28.5 – 31.5] [mm]
Aspect ratio (λ = l / d) 55 [47 – 63]
Tensile Strength 1395 [N/mm²] [1290 – 1500] [N/mm²]
Modulus of Elasticity ± 200 000 [MPa]

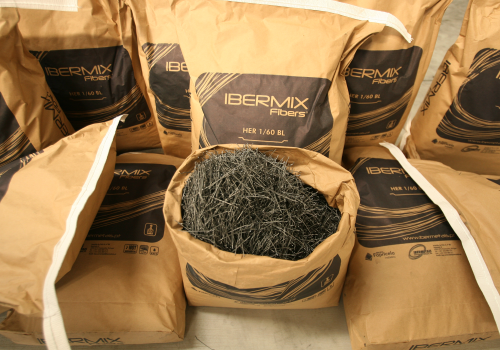

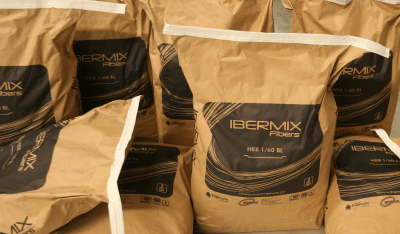

Bag Weight Number of fibers / kg Pallet standard

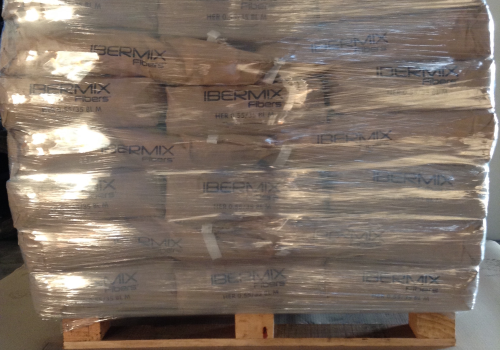

20 Kg 17870 1200 kg - 60 paper bags

Other specifications on request.

Steel fibers suitable for “shotcrete”, tunneling construction, slope stabilization and fabrication of pre-cast elements.

Examples:
